Lithium-iron phosphate prismatic battery cells with energy density of 138 Wh/kg

Share

From pv magazine Global

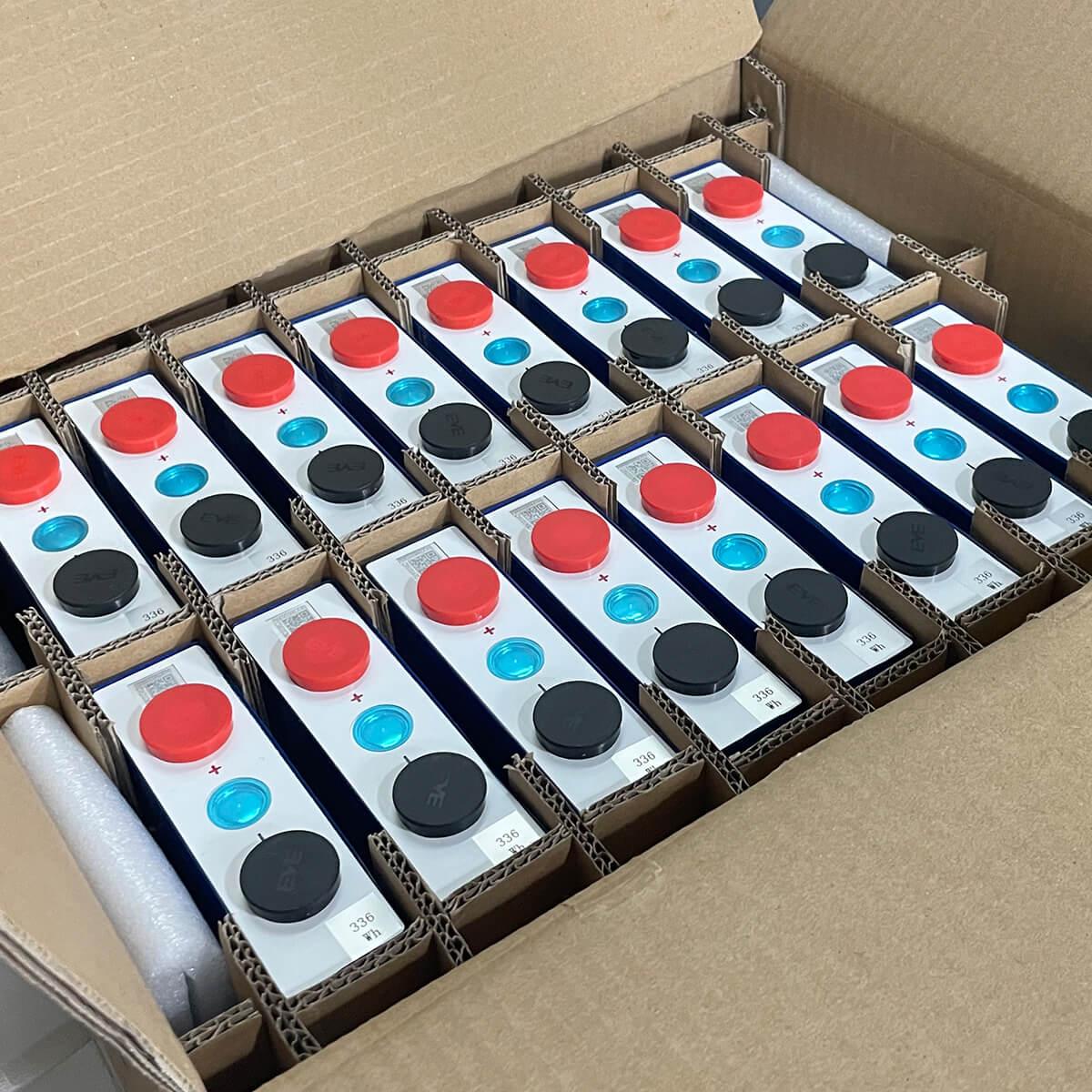

China’s Imren Battery has unveiled its new LF105 rechargeable battery cell based on lithium-iron-phosphate (LFP) chemistry.

The cell offers a nominal voltage of 3.2 V and a capacity of 105 Ah, making it suitable for a wide range of applications, including electric vehicles, energy storage systems, and other applications. For instance, the company said a kit of 16 LF105 battery cells could provide energy storage with a capacity of up to 1,600 Wh.

LF105 boasts an energy density of 138 Wh/kg, allowing for more energy storage in a smaller space. The cell is rated for up to 5,000 cycles at 80% depth of discharge.

The LF105 LiFePo4 cell features a prismatic design, which provides a compact and space-efficient solution compared to cylindrical cells. It measures 200 mm x 130 mm x 36 mm and weighs 1.98 kg.

It is equipped with a built-in protection against overcharging, over-discharging, and short circuits which ensures that it operates within safe parameters. The cell also has a wide operating temperature range of -20 C to 60 C, ensuring reliable performance in a range of environments.

The LF105 LiFePo4 prismatic battery cell is now available for purchase and can be delivered from the company’s warehouses in the US and Germany.

Founded in 2013, Shenzhen IMR Technology Co., Ltd. (Imren Battery) has a varied portfolio of products that includes batteries, battery chargers, torches, headlamps, unmanned aerial vehicles, and USB chargers, among others.
