Citizen Solar introduces 590 Wp TOPCon bifacial module with 22.84% efficiency

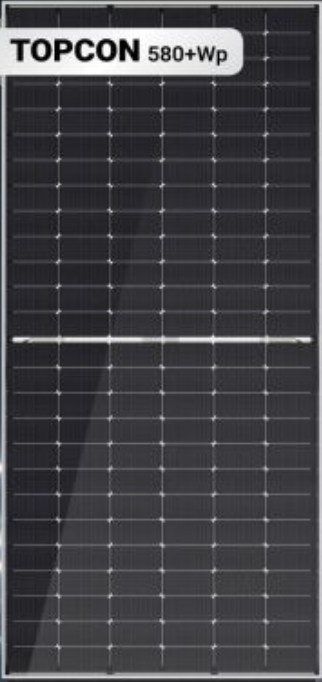

Gujarat-based Citizen Solar has introduced the enlight series n-type TOPCon bifacial modules in power ratings of 570 Wp to 590 Wp with efficiencies between 20.07% and 22.84%, respectively.

The modules are built with 144 half-cut solar cells designed with 16 busbars.  Temperature coefficient of Pmax is -0.29% per degree Celsius.

The open-circuit voltage is between 52.1 V and 52.9 V and the short-circuit current is between 13.83 A and 14.07 A. The maximum system voltage is 1,500 V.

The panels measure around 2,278 mm x 1,134 mm x 35 mm and weigh 28 kg. They also feature an IP68 rated split junction box with three bypass diodes. The operating temperature ranges from -40 C to 85 C.
