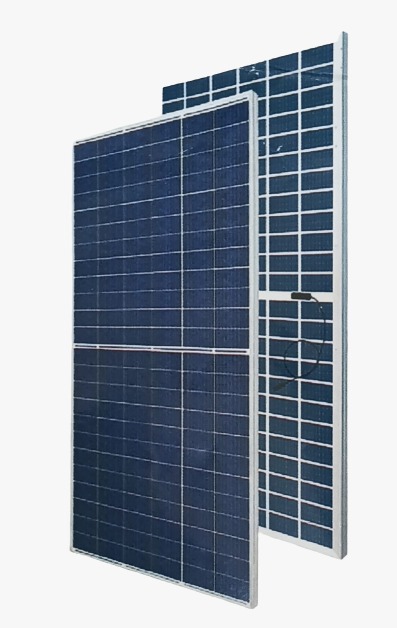

India’s Contendre Solar has unveiled CG X 144 series mono PERC modules, which, it said, are ideal for commercial and industrial rooftop installations as well as ground-mount PV plants.
The modules are built with 144 half-cut mono PERC cells based on M10 wafers and multibusbar design. These are available in power outputs ranging from 535 W to 550 W, with power conversion efficiency between 20.7% and 21.3% under standard test conditions. The open-circuit voltage is 49.45 V to 49.90 V, and the short-circuit current is 13.79 A to 14 A.
Each panel has dimensions of 2,279×1,134×35 mm and weighs 28 kg. It features a 3.2 mm anti-reflective tempered glass, fluoro polymer-based backsheet, and an anodized aluminum frame. The maximum system voltage is 1,500 V DC. The panel has a Pmax temperature coefficient of -0.35% per degree Celsius, and its operating temperature ranges from -40°C to +85°C.
The panel is certified to withstand a wind-induced load of 2,400 Pascal and a snow load of 5,400 Pascal. It comes with a 12-year product warranty and a 25-year linear power output warranty.
