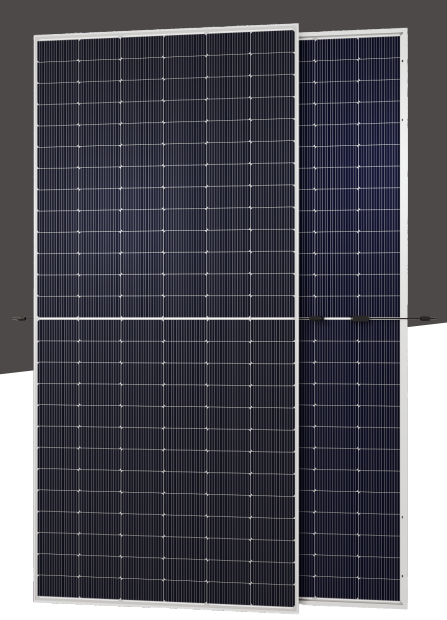

OSDA Solar has introduced its ODA-156MHD series TOPCon bifacial modules with power outputs ranging from 590 Wp to 630 Wp and efficiencies up to 22.54% in India.
The modules are built with 156 n-type bifacial monocrystalline cells based on 182mm (M10) wafer and 16BB technology. The panels can be used with a maximum system voltage of 1,500 V. Pmax temperature coefficient is -0.300%/℃. The operational temperature range is from -40°C to 85°C.
The modules weigh 34.70 kg and measure 2,465×1,134×30 mm. These feature a 2.0mm antireflective tempered glass on the front and a 2.0mm glazed glass on the back.
The modules come with a 15-year guarantee on product material and workmanship and a 30-year linear power output warranty.
