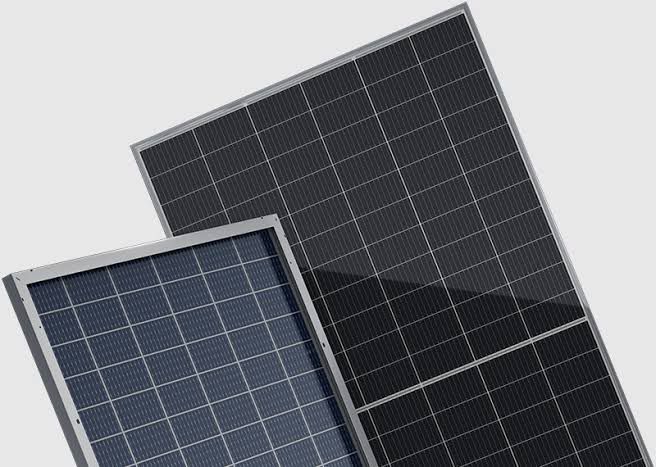

Gujarat-based Credence Solar has introduced Quasar-Bi line of bifacial PV modules. The modules are available with power outputs between 650 Wp and 670 Wp, with front-side power conversion efficiencies from 21% to 21.6%. Rear-side gain is minimum 10% under standard test conditions, leading to 737 W output.
The glass-to-glass panels are built with 132 mono PERC half cells and 12 busbars.
Under standard test conditions, the open-circuit voltage is 45.2 V to 45.4 V, and the short-circuit current 18.15 A to 18.65 A.
Each panel measures 2,384×1,303×35 mm and weighs 38.75 kg. It features an IP68 split junction box. The maximum system voltage is 1,500 V DC. The panel has a Pmax temperature coefficient of -0.38% per degree Celsius, and its operating temperature ranges from -40°C to +85°C.
The panels come with a 25-year linear power output warranty and a 10-year product warranty. These are BIS approved.
