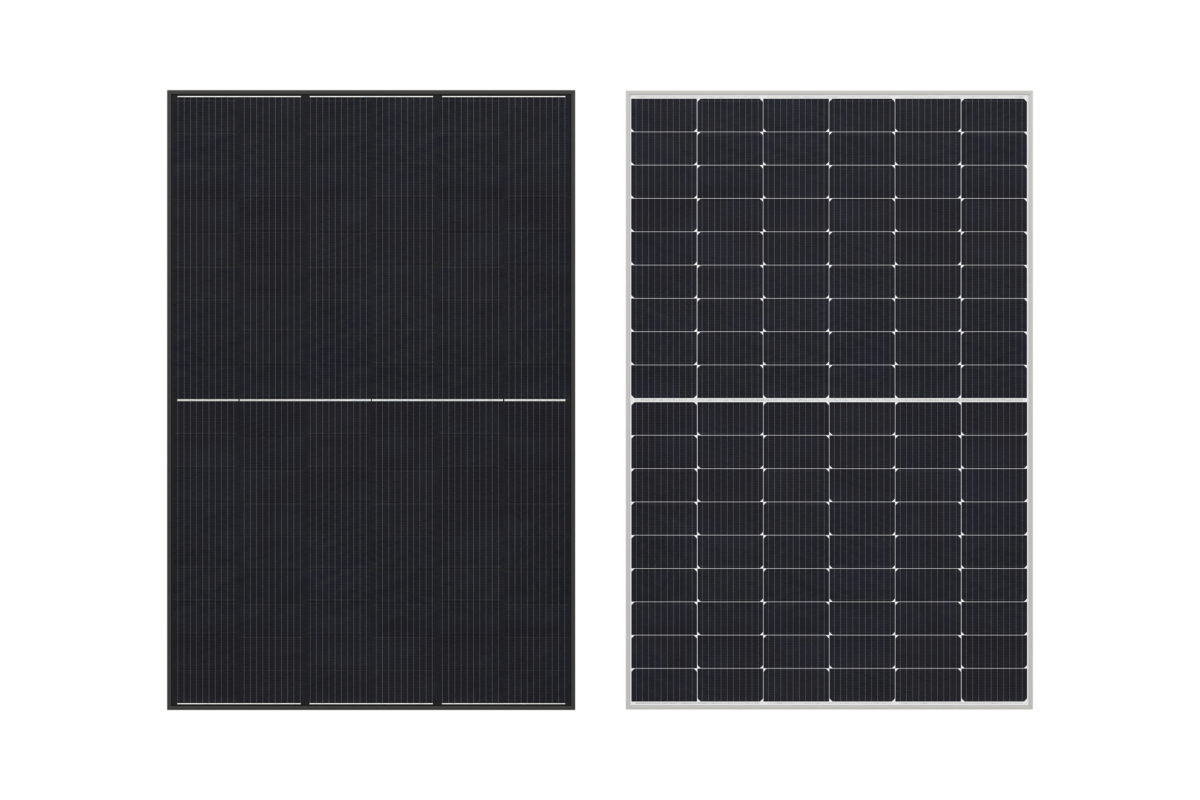

Japanese electronics manufacturer Sharp has unveiled the NU-JC410 solar panel, a half-cut monocrystalline PERC product with a 21% efficiency rating and 410 W of power output.
The IEC61215 and IEC61730-certified panel features 108 half-cells based on M10 wafers and a 10-busbar design. It has overall dimensions of 1,722×1,134×3.5mm and weighs in at 21.8kg.
The panel can be used in PV systems with a maximum voltage of 1,000 V and an operating temperature between -40 degrees Celsius and 85 degrees Celsius. It comes with a 25-year linear power output guarantee and a 15-year product guarantee. The operating temperature coefficient is -0.341% per degree Celsius and its power tolerance reaches up to 5%, the manufacturer claims.
“The new modules are suitable for short frame side clamping, and are designed for residential, small–scale commercial and industrial rooftop installations,” the manufacturer said in a statement. “The low weight and dimension make these modules easy and comfortable for transport, handling and installation.”
The module is fabricated with a white backsheet and anti-reflective, highly-transmissive, low iron tempered glass, and a frame made of anodized aluminum alloy and silver. The Japanese manufacturer said that its half-cut modules feature three small junction boxes, instead of one; all with bypass diodes. These enclosures transfer less heat to the upper cells, which helps to extend the lifetime of panels while improving overall system performance, it claimed.
