From pv magazine International

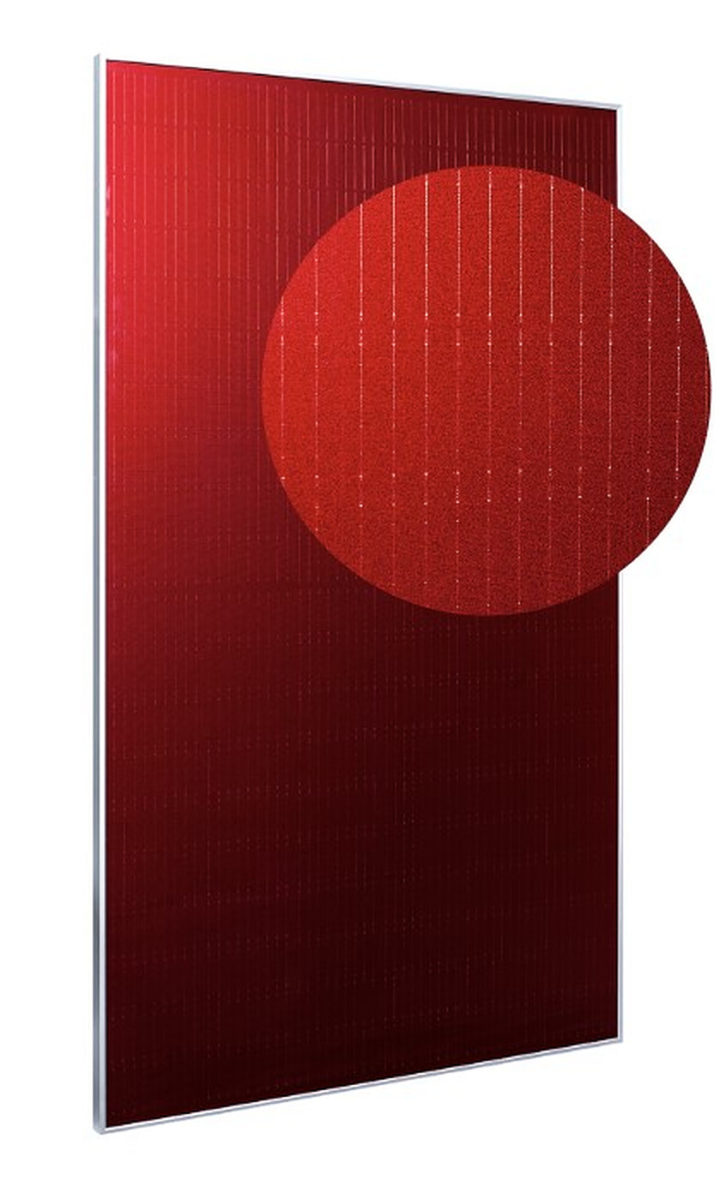

Italian solar manufacturer FuturaSun has designed a red, building-integrated (BIPV) solar panel for demanding architectural solutions.
The Silk Pro Red module is made with 120 half-cut, monocrystalline, multi-busbars cells and can be manufactured with a customized frame color. It is available in four versions with a power output ranging from 230 W to 245 W and a power conversion efficiency spanning from 12.63% to 13.45%. Its open circuit voltage is 40.21-40.81 V and the short-circuit current is 7.27-7.48 A.
The new product has a size of 1,755×1,038x35mm and weighs in at 19.7kg. It relies on a backsheet made of composite multi-layer film and an anodized aluminum frame with mounting and drainage holes.
FuturaSun offers a 15-year product guarantee and the operating temperature coefficient is -0.35% per degree Celsius. The degradation in the first year is claimed to be 3% and the 25-year end power output is guaranteed to be no less than 87% of the nominal output power.
The maximum system voltage is 1,000 V and the maximum reverse current is 20 A.
