German scientists use germanium to improve performance of kesterite solar cells

Researchers at Germany’s Helmholtz-Zentrum Berlin are seeking to replace tin with germanium in the development of solar cells based on kesterite, which is one of the most promising light absorber material candidates to lead the next generation of thin film solar cells.

Kesterites are comprised of common elements, such as copper, tin, zinc and selenium and, unlike Copper Indium Gallium Selenide (CIGS) compounds, no supply bottlenecks are expected in the future. The latter, however, is currently able to provide cell efficiencies close to 20%, while kesterites have so far achieved efficiencies of just 12.6%.

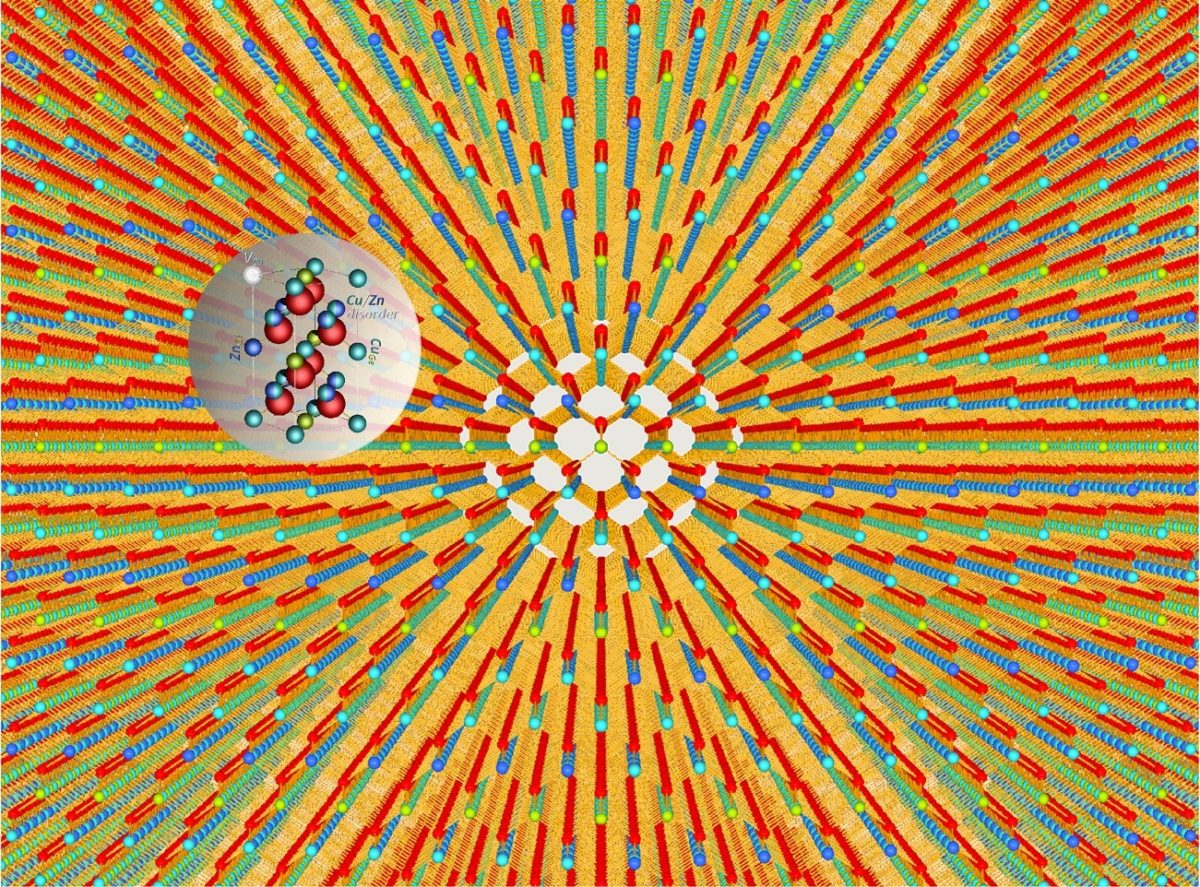

In its research, the team led by Professor Susan Schorr has gained new insight into the opto-electronic properties of non-stoichiometric kesterite samples, in which tin atoms were replaced with germanium, by using neutron diffraction at BER II. This technique has allowed them to see more accurately how copper, zinc and germanium can be distinguished from each other, and to locate them in the crystal lattice.

The researchers found that kesterites with a slightly copper-poor and zinc-rich composition in solar cells with the highest efficiencies also have the lowest concentration of point defects, as well as the lowest disorder of copper-zinc. They further found that the energy band gap in the cell also depended on the composition of the kesterite powder samples, and that a higher concentration of copper was particularly detrimental to the cell’s performance.

“This band gap is a characteristic of semiconductors and determines which frequencies of light release charge carriers within the material,” said research coordinator, René Gunder. “We now know that germanium increases the optical band gap, allowing the material to convert a greater proportion of sunlight into electrical energy.”

Author: Emiliano Bellini
