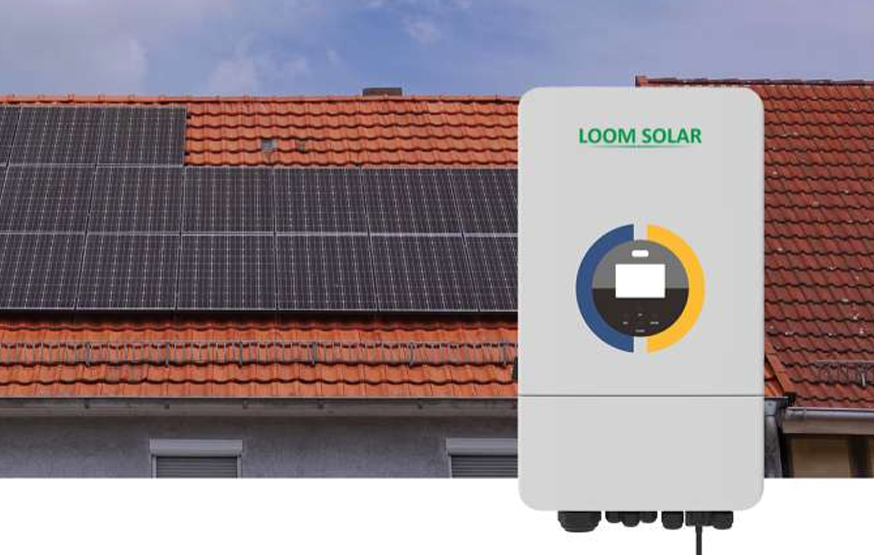

Loom Solar has introduced the Fusion 103H three-phase 10kW/48V hybrid inverter combining the functions of a traditional solar inverter and a battery inverter in a single device. The wall-mount inverter is designed for both on-grid and off-grid use and is suitable for larger homes, commercial buildings, and industries. The DC-to-AC conversion efficiency is up to 97.6%
This inverter supports parallel connection of up to nine units to increase load handling capacity and features quick grid disconnection for safety during outages. It can handle a maximum DC input power of 13,000 W, with a rated PV input voltage of 550V and output power of 10,000W, suitable for three-phase electrical systems.
The inverter features dual MPPT, a 4.4-inch colored LCD display, and built-in Wi-Fi monitoring. It is compatible with various battery types including lead-acid, lithium-ion, and LiFePO4.
The inverter has a robust IP65-rated design for durability and operates in a wide temperature range (-45 to 60 degrees C) with transformerless topology.
The inverter weighs 15.1 kg and measures 422 x 702 x 281 mm.
